MACHINE VISION SYSTEM

The Eyes of Modern Manufacturing

In the era of Industry 4.0, FA (Factory Automation) Vision Systems serve as the “eyes” of the production line. By integrating high-resolution cameras, specialized lighting, and advanced image processing software, these systems allow machines to see, interpret, and act upon visual information in real-time.

Unlike human inspection, FA Vision Systems provide 24/7 consistency, operating at high speeds with microscopic precision to ensure that every product meeting the assembly line is perfect.

Ultra-High Speed Inspection for Next-Gen Energy

In the fast-evolving battery industry, even the microscopic flaw can lead to critical safety issues. Our vision systems, powered by advanced Line Scan Technology, are specifically engineered to keep pace with high-speed electrode coating and assembly lines where standard cameras simply cannot keep up.

The Hybrid Advantage: Dual-Vision Integration

Most systems force a choice between high-speed scanning and precision alignment. Our cutting equipment utilizes a Dual-Vision Architecture, leveraging the unique strengths of both Line Scan and Area Scan technologies to achieve 100% quality assurance.

Global Inspection via Line Scan (The “Eyes” of Motion)

As the diffusion film moves through the feeder or Roll-to-Roll (R2R) system, the Line Scan Camera acts as a continuous scanner.

  • Role: It performs “On-the-Fly” surface inspection.
  • Function: It scans 100% of the film surface at high speeds to detect microscopic scratches, dust, or coating irregularities that occur during transit.
  • Benefit: No blind spots. It captures the “Global Map” of the material, ensuring that only defect-free sections proceed to the cutting stage.

Local Precision via Area Scan (The “Brain” of Accuracy)

Once the film reaches the cutting zone, the Area Scan Camera takes over for static, high-resolution positioning.

  • Role: It performs “Point-of-Cut” alignment.
  • Function: It captures a high-resolution snapshot of specific fiducial markers or corners. It calculates the exact $X, Y,$ and $\theta$ (rotation) coordinates.
  • Benefit: Micrometer-level alignment. It compensates for any slight physical shifting or stretching of the film that might have occurred after the initial scan.

ISG KOREA FA VISION SYSTEM WITH RAYTRONIX

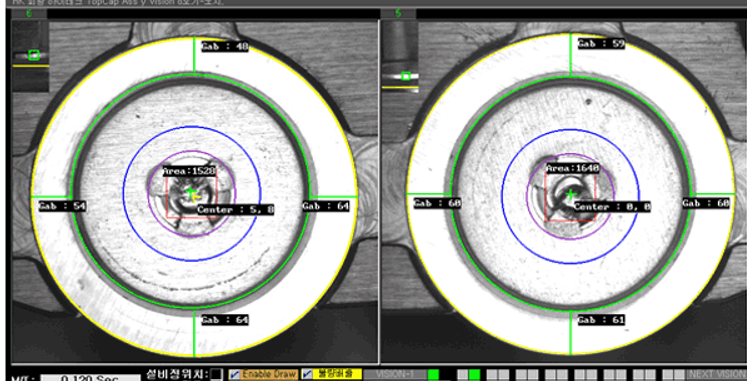

  • BATTERY TAB INSPECTION VISION SYSTEM

Precision Vision-Guided Cutting Systems for Display Diffusion Films

Our cutting-edge Vision-Guided Laser/Mechanical Cutting Solutions are specifically engineered for the display industry’s most demanding materials. By integrating high-resolution imaging with real-time AI analysis, we overcome the traditional challenges of processing diffusion films—ensuring micrometer-level accuracy and clean edges without thermal deformation.

Comprehensive Customization from A to Z

We are more than just an equipment provider; we are a End-to-End Solution Partner. Recognizing that every production line has unique requirements, we offer fully customizable designs tailored to your specific manufacturing environment—from initial concept and hardware selection to final integration.

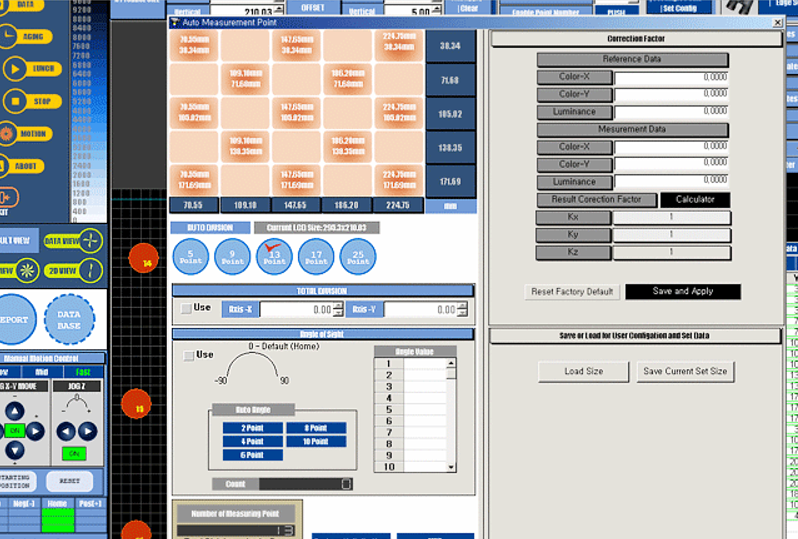

In-House Software Excellence

The core of our precision lies in our software. Our dedicated in-house software development team builds and optimizes the vision algorithms that power our systems. This allows us to:

  • Rapidly Adapt to new types of display films and optical materials.
  • Provide Seamless Integration with your existing factory management systems (MES/ERP).
  • Deliver Continuous Updates and technical support directly from the source code creators.

From hardware architecture to proprietary software, ISG KOREA & RAYTRONIX build the A to Z of your vision success.
